8cores 8fibers 8fo Armored OM3 50/125 Multimode GYTXW Aerial Outdoor Fiber Optical Cable

  • 8cores 8fibers 8fo Armored OM3 50/125 Multimode GYTXW Aerial Outdoor Fiber Optical Cable
  • 8cores 8fibers 8fo Armored OM3 50/125 Multimode GYTXW Aerial Outdoor Fiber Optical Cable
  • 8cores 8fibers 8fo Armored OM3 50/125 Multimode GYTXW Aerial Outdoor Fiber Optical Cable
Lugar de origem Cantão, China
Marca KCO, Kocent Optec Limited
Certificação ISO9001, RoHS
Número do modelo KCO-GYXTW-6b1
Quantidade de ordem mínima 1000 milhões
Preço negotiable
Detalhes da embalagem rolos de madeira, paletes de madeira
Tempo de entrega 2~5 dias depois que obtêm o pagamento
Termos de pagamento Western Union,T/T,L/C
Habilidade da fonte 10,000km/mês
Detalhes do produto
Material PE, LDPE, HDPE Nome cabo de fibra óptica ao ar livre
Comprimento 2 km a 3 km por rolha Tipo de cabo Gyxtw
Fibra Modo único G652D Núcleos 6 fibras
Cor Preto Diâmetro 7,0 mm ± 0,3
Número da peça GYXTW-6b1
Destacar

8cores armored OM3 fiber cable

,

outdoor aerial multimode optical cable

,

GYTXW 50/125 fiber optic cable
Deixe um recado
Descrição de produto
8cores 8fibers 8fo Armored OM3 50/125 Multimode GYTXW Aerial Outdoor Fiber Optical Cable
1. What is GYTXW Aerial Outdoor Fiber Optical Cable?
  • GYTXW Aerial Outdoor Fiber Optical Cable cables feature central loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Two parallel steel wires are placed at the two sides of the steel tape, to ensure tensile strength.
  • GYTXW Aerial Outdoor Fiber Optical Cable is completed with a single polyethylene (PE) sheath. This is suitable for aerial or duct environment for communication between bureaus, metropolitan network, access network.
  • GYTXW Aerial Outdoor Fiber Optical Cable is water proof, small diameter (can do 6.0mm, 6.5mm, 7.0mm and 8.0mm) and light weight.
  • GYTXW Aerial Outdoor Fiber Optical Cable is suitable for outdoor application such as aerial, duct or direct burial of digital transmission communication systems.
  • The structure of GYTXW Aerial Outdoor Fiber Optical Cable:

Central Loose Tube: Contains 2 to 24 colored optical fibers (singlemode or multimode as customer request) surrounded by a water-resistant filling gel to prevent moisture ingress.
Armoring layer: A layer of corrugated steel tape (PSP) is wrapped longitudinally around the central tube, providing excellent crush resistance and protection against rodents.
Strength Members: Two parallel steel wires are embedded on opposite sides of the cable to ensure high tensile strength, which is critical for overhead hanging between poles.
Outer Sheath: A durable black Polyethylene (PE) jacket provides UV protection and environmental resistance.

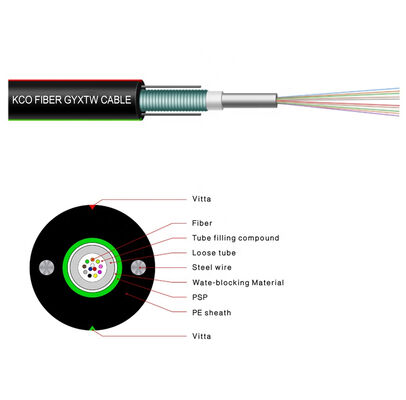

2. GYTXW Aerial Outdoor Fiber Optical Cable structure:
8cores 8fibers 8fo Armored OM3 50/125 Multimode GYTXW Aerial Outdoor Fiber Optical Cable 0
3. GYTXW Aerial Outdoor Fiber Optical Cable Technical Data:

Item

Specification

Cable type

KCO GYXTW

Application

Outdoor (Aerial, duct, direct burial, etc)

Fiber count

8 fibers, 8 cores (8a1a)

Fiber type

Multimode OM3-150 or Multimode OM3-300

Cable Dia.

7.0mm ± 0.3 (or customized)

Cable out sheath

HDPE (or customized)

Strength member

Steel wire

Crush Resistance

High (due to corrugated steel tape)

Water Blocking

Jelly-filled tube + water-blocking material

4. GYTXW Aerial Outdoor Fiber Optical Cable Applications:

+ FTTx (FTTH, FTTA, FTTB, FTTR, FTTO, etc)

+ LAN, WAN

+ CATV

+ Metro

+ Data center

+ Passive Fiber Optic Network

+ Lab Test

5. GYTXW Aerial Outdoor Fiber Optical Cable Mechanical Characteristic:
Fiber number Cable diameter Weight
1~24
8.0mm+-0.5mm 70kg/km
7.0mm+-0.3mm 50kg/km
Temperature range -40°C to +70°C
Min Bending Radius(mm) Long term 10D
Min Bending Radius(mm) Short term 20D
Min allowable Tensile Strength(N) Long term 1200
Min allowable Tensile Strength(N) Short term 1500
Operation temperature -40°C+70°C
Installation temperature -20°C+60°C
Storage temperature -40°C+70°C
6. Fiber color:
1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

8cores 8fibers 8fo Armored OM3 50/125 Multimode GYTXW Aerial Outdoor Fiber Optical Cable 1

KCO Fiber OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

8cores 8fibers 8fo Armored OM3 50/125 Multimode GYTXW Aerial Outdoor Fiber Optical Cable 2
Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
